NX5001 — Incremental Encoder Input
The NX5001 manages a 24 Vdc incremental encoder, acquiring traces A/A#, B/B# and the Z/Z# index. It also provides a latch input for position capture (rising and falling edge), measures the time between latch and Sync0 (µs resolution), and the time between consecutive Index signals.
Hardware

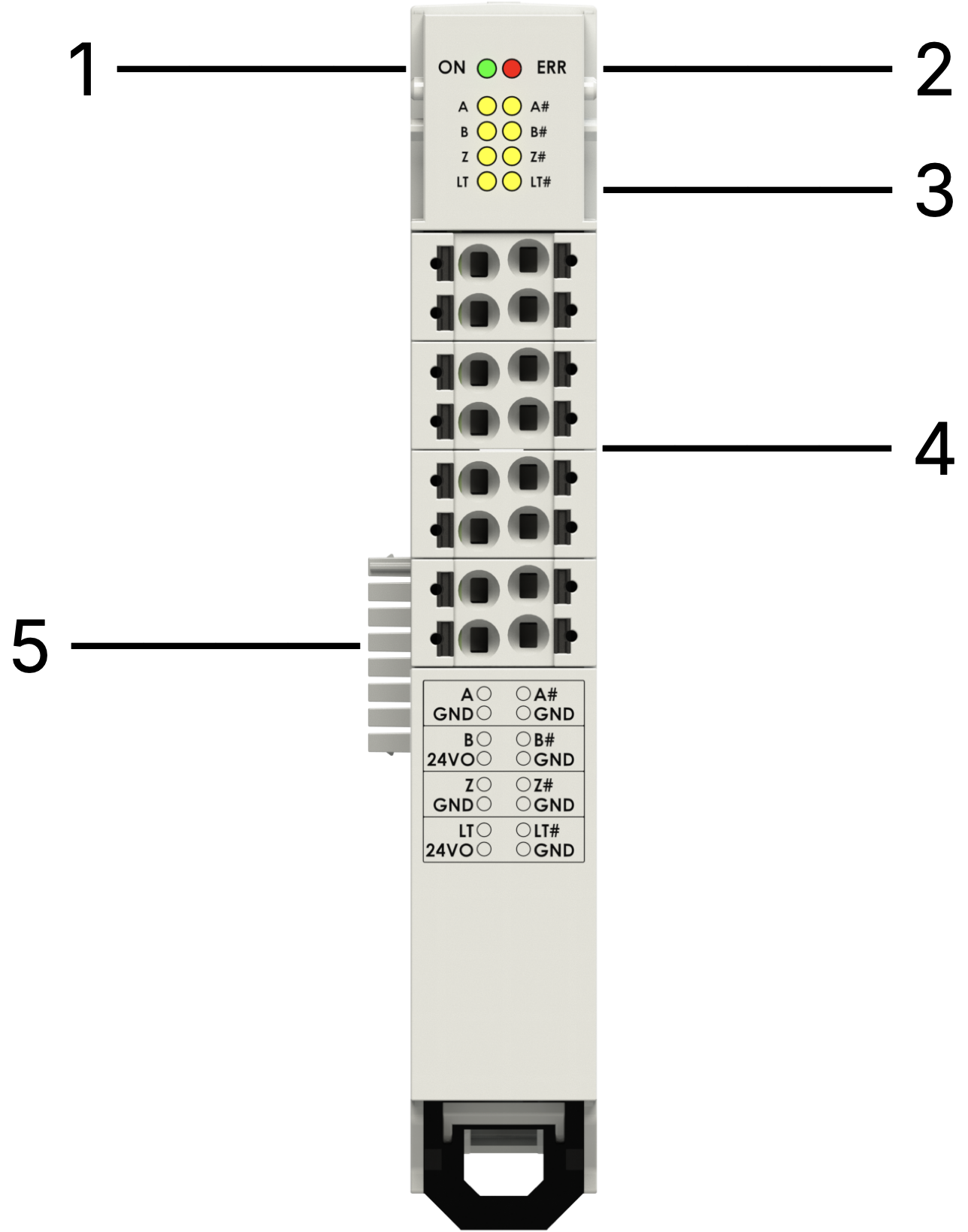

Section titled “Hardware”Connection
Section titled “Connection”
| n° | Item | Description |
|---|---|---|
| 1 | RUN LED | Green — EtherCAT state |
| 2 | ERROR LED | Red — EtherCAT error |
| 3 | I/O LEDs | Yellow — encoder state |
| 4 | I/O connectors | Removable terminals |
| 5 | Internal Bus | Power supply and EtherCAT bus |

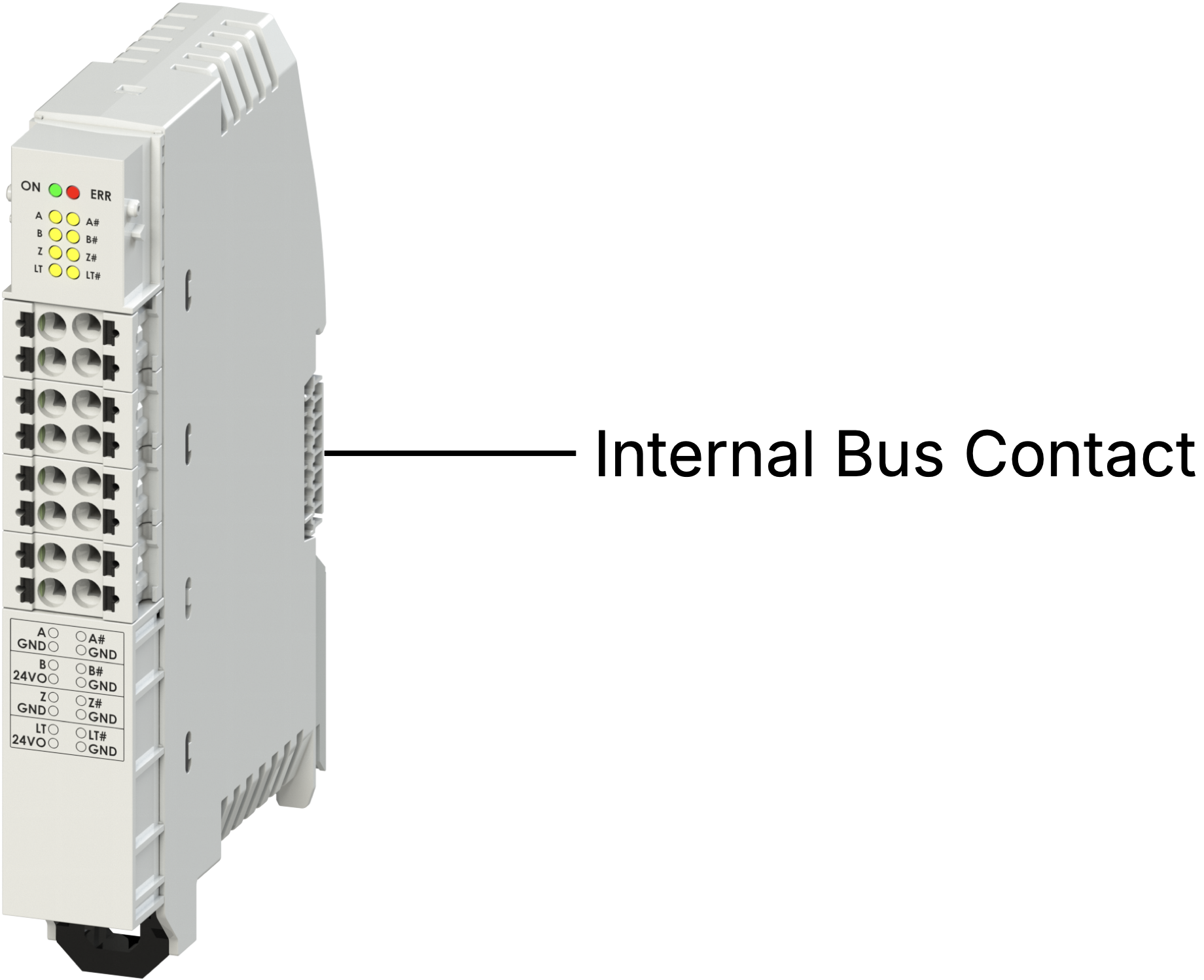

Internal Bus
Section titled “Internal Bus”

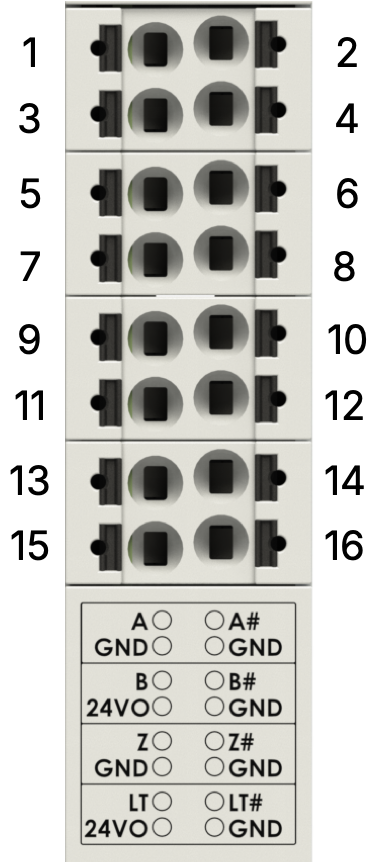

Encoder Input Signals
Section titled “Encoder Input Signals”

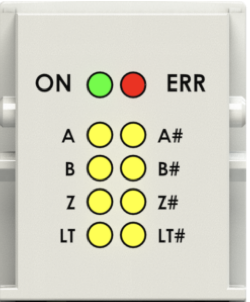

LED States
Section titled “LED States”
| LED | State | Meaning |
|---|---|---|
| On/Run | Off fixed | Initialization |
| On/Run | Slow blinking | Pre-Operational |
| On/Run | Single blink + pause | Safe Operational |
| On/Run | On fixed | Operational |
| On/Run | Off or fast blinking | Boot |
| Error | On fixed | No connection |
Software
Section titled “Software”EtherCAT I/O Mapping — TxPDO
Section titled “EtherCAT I/O Mapping — TxPDO”| Channel | Value |
|---|---|
| Position | 32-bit counter |
| Latch position | 32-bit |
| Time latch–Sync0 | 32-bit (µs) |
| Time between Index signals | 32-bit (µs) |
SDO Configuration — SDO 8000h
Section titled “SDO Configuration — SDO 8000h”| Index | SubIndex | Description |
|---|---|---|
| 8000h | 1 | Encoder configuration |
Technical Data
Section titled “Technical Data”| Parameter | Value |
|---|---|
| Channels | 1 |
| Encoder input voltage | 5–24 Vdc |
| Encoder input current | 11 mA @ 24 Vdc |
| Encoder input frequency | 0–750 kHz |
| Encoder power supply output | 24 V @ 500 mA |
| Current absorbed | ~50 mA |
Module Installation
Section titled “Module Installation”Mount on DIN rail (DIN EN 60715). Connect to the left via the T-bus connector. Always power off before inserting.
