Software

The nX3CpuSetup 1.0.1.0 library (CODESYS) provides runtime control over IP settings.

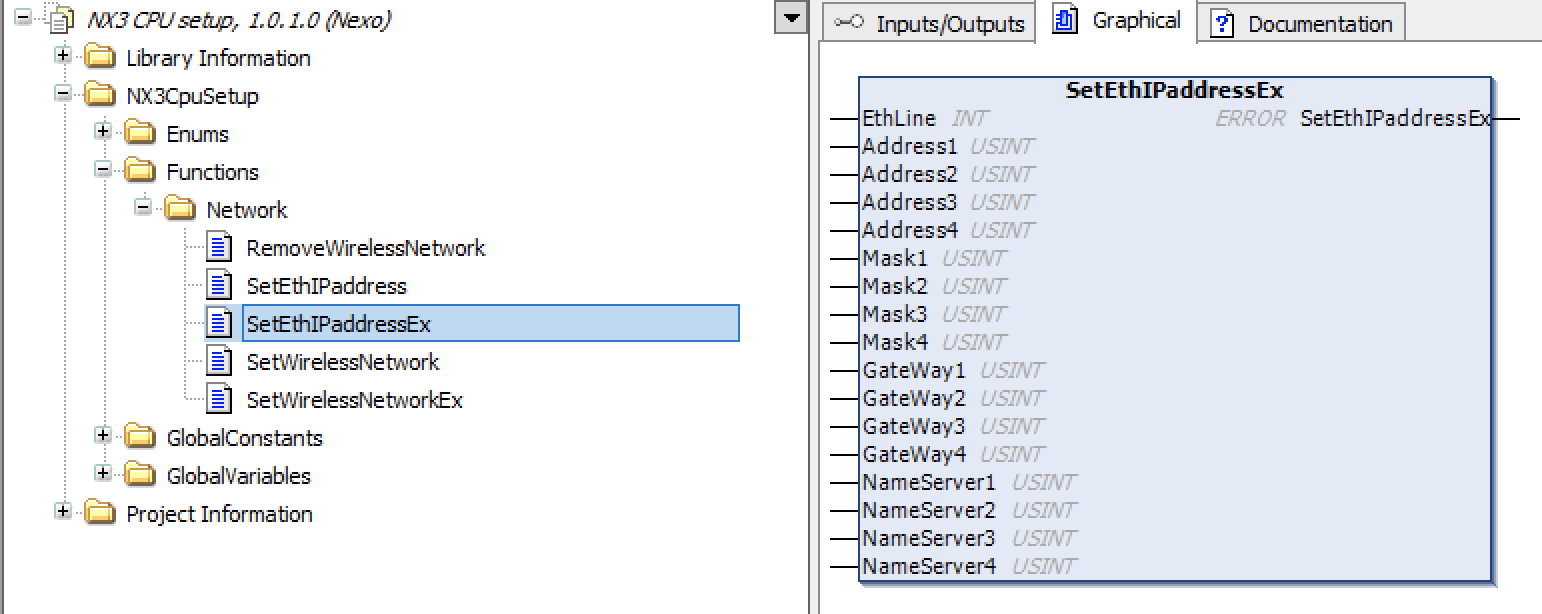

SetEthIPAddressEx

Changes the IP configuration of ETH0 or ETH1 at runtime from within a CODESYS application.

Static IP on ETH0:

VAR
    Error : nX3.ERROR;
END_VAR

Error := nX3.SetEthIPaddressEx(
    0,
    192, 168, 10, 123,   (* IP *)
    255, 255, 255, 0,    (* Mask *)
    192, 168, 10, 1,     (* Gateway *)
    192, 168, 10, 1      (* DNS *)
);

Static IP on ETH1:

Error := nX3.SetEthIPaddressEx(
    1,
    192, 168, 20, 123,
    255, 255, 255, 0,
    192, 168, 20, 1,
    192, 168, 20, 1
);

DHCP (pass all zeros):

Error := nX3.SetEthIPaddressEx(
    0,
    0, 0, 0, 0,
    0, 0, 0, 0,
    0, 0, 0, 0,
    0, 0, 0, 0
);

Removable Storage

Device	Mount path
microSD	`/media/mmcblk1p1/`
USB memory	`/media/sda1/`

Read and write files using the standard CODESYS file access functions.

CODESYS Automation Server (CAS)

The nX7 and nX10 support connection to the CODESYS Automation Server for:

Remote device access and monitoring
Application deployment and update
WebVisu and TargetVisu page hosting

A CAS account is required. See the CAS official help.

CODESYS Edge Gateway

To connect the nX7 or nX10 to CAS, install the CODESYS Edge Gateway component on the device. Follow the Edge Gateway for Linux guide.
